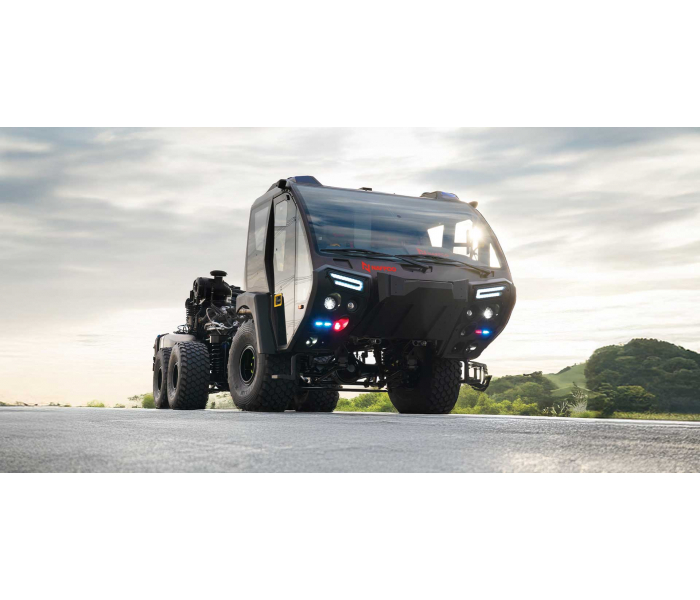

NAFFCO ARFF Chassis
Contact Us to Purchase
Features
Safety & Control
- Electronic brake pad wear indication
- Emergency brake for off-road use
- Differential locks for improved traction
- Stabilizer bar for better cornering and roll stability
Driver & Interface
- Digital graphical instrument cluster
- Built-in diagnostics & error display
- CAN J1939 communication system
- Multi-function steering wheel
- Steering wheel wiring harness
Durability & Build
- Heavy-duty anti-corrosion chassis coating
- Vibration-resistant fasteners
- Designed for extreme operating environments
- Robust off-road performance capability
Comfort & Stability
- Enhanced driving comfort
- Improved roll stability
- Better handling on and off road
Specifications
Vehicle & Performance
- Chassis: 6×6 all-terrain ARFF chassis
- Gross Vehicle Weight: 39 tons
- Transmission: 6+1 speed automatic
- Axles: 3 axles with differential transmission
- Acceleration: 0–80 km/h in under 55 seconds
- Top speed: 115 km/h
Engine
- Engine: Scania DC16 123A
- Power output: 700 HP (522 kW)
- Emission standard: Euro VI compliant
- Fuel system: Common rail fuel injection
- Cooling: Liquid-cooled
- Turbocharged
- High torque, low fuel consumption
Transmission & Drivetrain
- Twin Disc 1790 series automatic gearbox
- Full-time all-wheel drive
- Power divider for 1st, 2nd & 3rd axles
- Differential lock with 30:70 biasing
Front Axle
- Steering axle
- ZF H5195 differential lock
- Planetary reduction at wheel hubs
Rear Axle
- Planetary reduction at wheel hubs
- Torque divider between axles
- Longitudinal & lateral differential locks
Suspension
- Mechanical leaf spring suspension
- Double shock absorbers
- Stabilizer bar
Brake System
- Pneumatic brake system
- EBS 3.3 electronic braking system
- ABS (anti-lock braking system)
- Electrically heated air dryer
- Automatic moisture ejector
- Emergency brake function
- Quick release locking brake (within 15 sec)
Chassis & Frame
- Double longitudinal C-channel frame
- Cross-member reinforcement
- Anti-corrosion treated chassis
- High torsional strength
- Front traction eyes
Operating Conditions
- Temperature range: −25°C to +55°C
- Humidity: up to 100%
Compliance & Standards
- ICAO compliant
- NFPA 414 (2020 edition) compliant
